Description

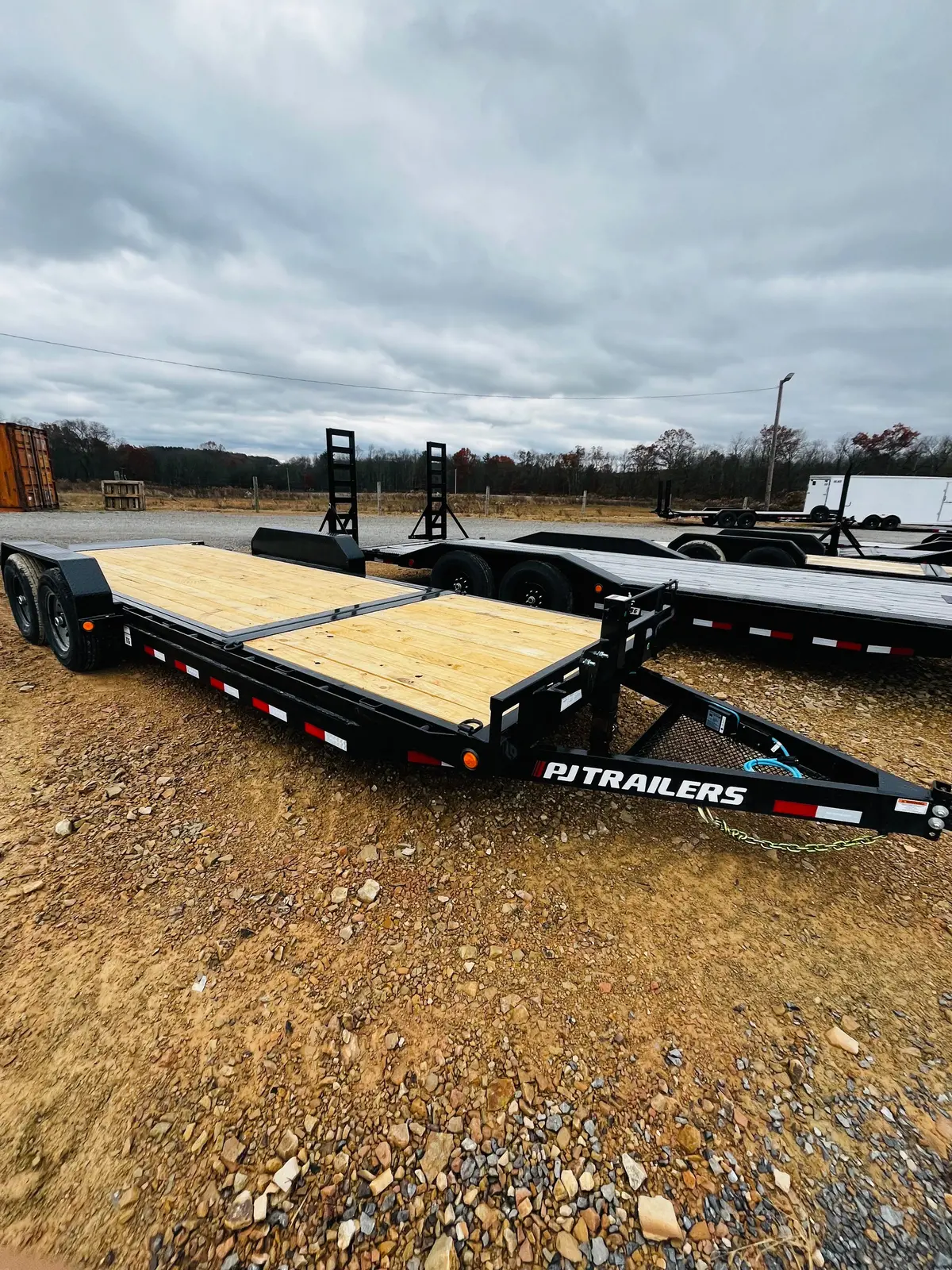

AVAILABLE AT: CORSICA, PATrailer Specs
| Dimensions |
| Length |
22′ |
| Deck Width |
83″ |
| Deck Height |
21″ |
| Weight Ratings |
| GVWR |
14,000 lbs. |
| GAWR |
7,000 lb. x (2) G.A.W.R. |
| Finish |
| Type |
Powdercoat |
| Prep |
Acid Wash, Sandblast |
| Colors |
Black, Desert Tan, Grey, Red, Tractor Orange, White |
| Warranty |
| Axle Warranty |
10-Year Torsion Axle Warranty |
| Trailer Warranty |
Three (3) Year Frame/One (1) Year Limited Warranty |
Tongue
| Coupler |
| Standard Coupler |
BP 2-5/16″ Adjustable (14,000 lb.) |
| Jacks |
| Front Jack |
Spring Loaded Drop Leg Jack (12,000 lb.) |
| Front Jack |
GN Option Equipped with (2) Jacks |
| Front Tray |
| Tray |
Expanded Metal Chain Tray |
| Tongue |
| Type |
6″ Channel Tongue |
Length
(Bumper Pull) |
5′ 1″ (61″) |
Length
(Gooseneck) |
8′ 7″ (103″) |
| Safety System |
| Saftey Chains |
5/16″ Grade 70 Safety Chain w/Clevis hook (2 each) |
| Breakaway System |
Defender 2 Electric Breakaway System w/ Charger |
| Reflective Tape |
3M Dot Compliant Reflective Tape |
Chassis
| Deck |
| Flooring |
2″ Treated Pine Lumber Deck |
| Height |
21″ |
| Load Angle |
11° |
| Deck Width |
83″ |
| Inside Fender Width |
82″ |
| D-rings |
(6) Flushmount D-rings |
| Side |
| Side Rail |
2″ Rubrail with Pipe Spools |
| Stake Pockets |
3-5/8″ x 1-1/2″ (ID) Stake Pockets |
| Fenders |
9″ x 72″ Treadplate Removable Steel Fenders |
| Frame |
| Type |
Channel Frame |
| Size |
6″ |
| Crossmembers |
| Size |
3″ |
| Type |
Channel |
| Spacing |
16″ |
| Rear |
| Tail |
16′ Tilt Deck |
Running Gear
| Tires |
| Type |
Radial Tires |
| Size |
ST235/80R16 |
| Ply |
10 ply |
| Rating |
3,520 lbs. |
| Rims |
16″ Black Mod Wheels |
| Spare Tire |
Spare Tire Mount
Spare Tire & Mount with Gooseneck Coupler |
| Suspension |
| Axle Type |
Torsion |
| Axle Count |
2 |
| Axle Rating |
7,000 lb. |
| Brakes |
Electric |
| Suspension Type |
Torsion Suspension |
| Axle Warranty |
10-Year Torsion Axle Warranty |
Electrical & Lighting
| Battery & Charging |
| Wiring Harness |
All-Weather Wiring Harness (7-way RV) |
| Lighting |
| Side Markers |
DOT Approved Flushmount Lifetime LED Lights |
Lift System
| Hydraulics |
| System |
Hydraulic – Cushioned Gravity tilt |
| Lift Platform |
| Cylinder |
3″ x 16″ Cylinder |
Tilt
| Deck |
| Width |
74″ Wide Tiltable Deck |
