Description
Unleash Ultimate Performance
Cayote Crest X ESC delivers high performance and reliable current transmission, ensuring your RC vehicles run smoothly and efficiently. This ESC features an advanced cooling system and a variety of functions, combining smart technology with user-friendly operation. Pair it with Cayote motor and battery for best performance.
Product Core Tech
Super Large 48-degree Boost & Turbo Timing
Increased power output and optimized motor efficiency.
Offline Data Recording
Track ESC’s performance, lets you make informed decisions.
Over 33 Adjustable Parameters
Supports various power and drive modes.
1/10 RACING ESC

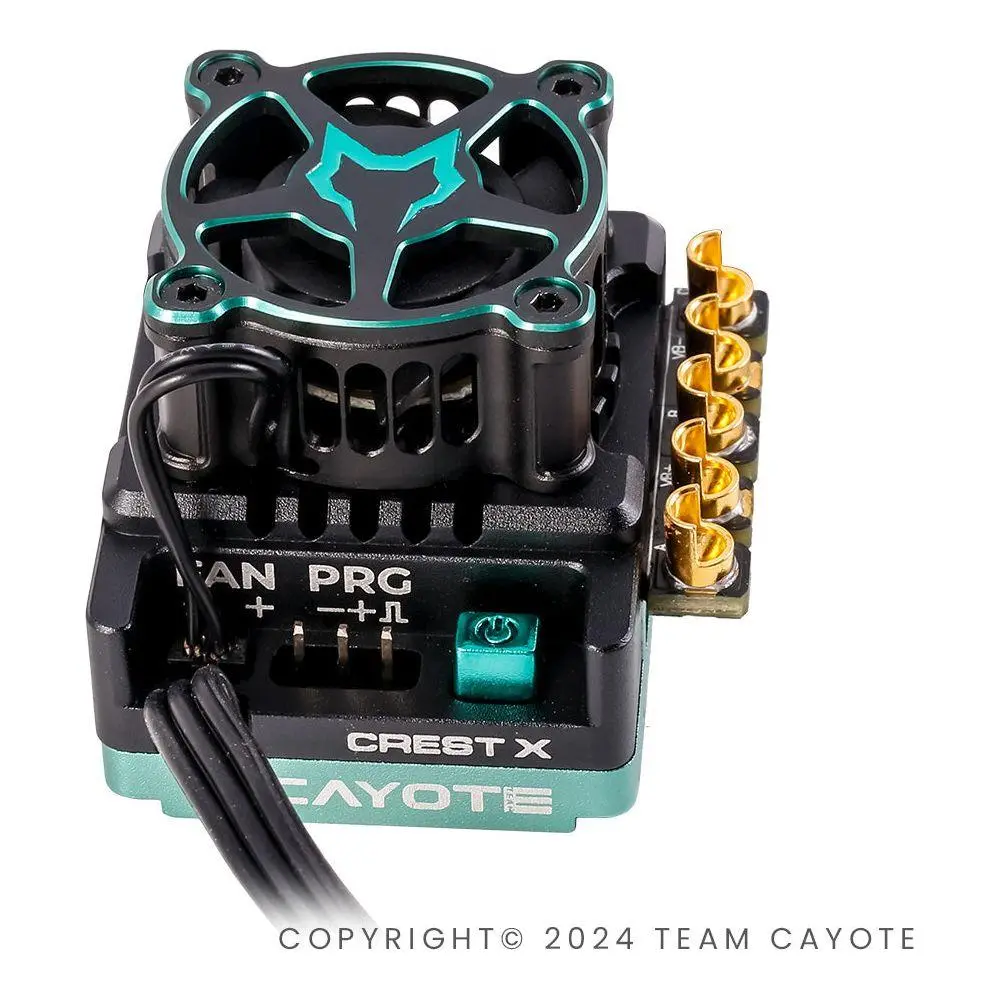

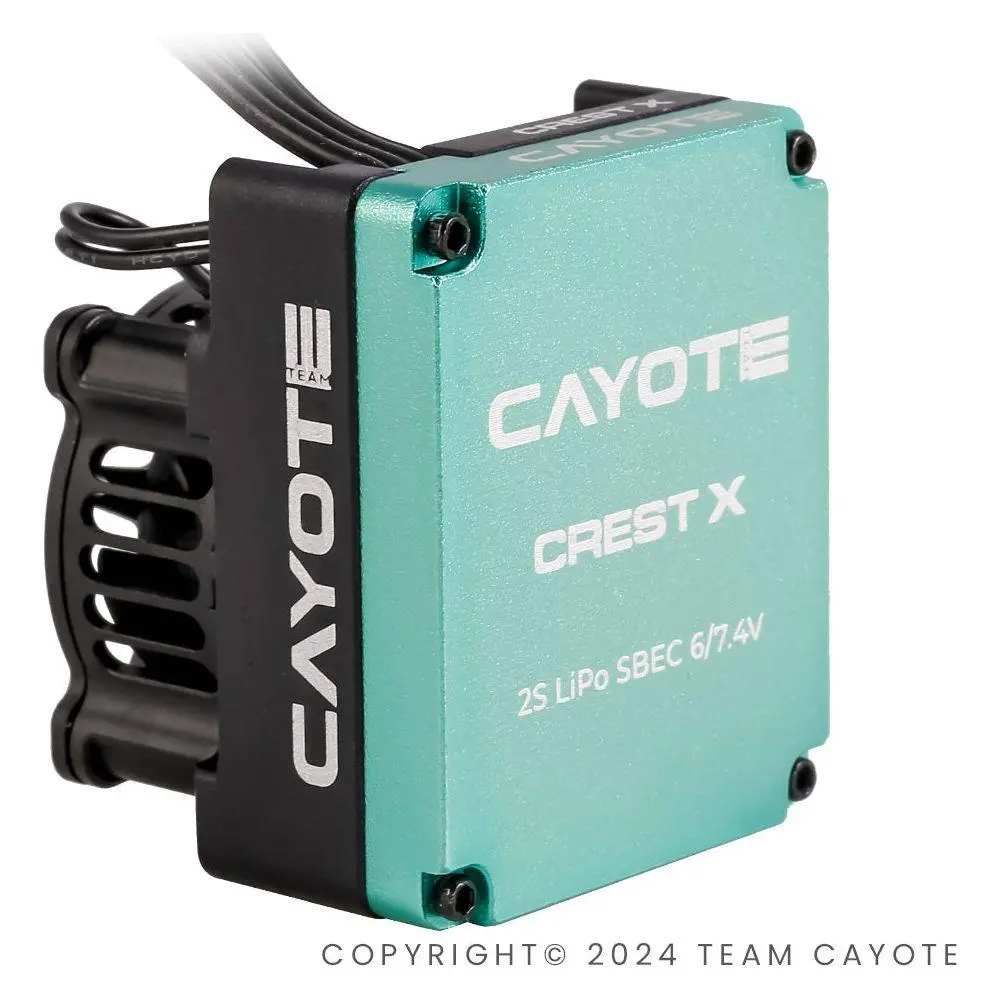

Crest X ESC
Product Features
Built-in Super Switching Mode BEC
Support of 6V/7.4V adjustable BEC to adapt to various high power BEC.
Built-in Professional Reversing Shutdown
Only enabled in forward with brake and forward and reverse with brake modes.
Multiple Protection Functions
Low voltage protection, ESC and motor overheat protection.
Crest X ESC
Specifications
- Scale: 1/10
- Mode:Sensor/Sensorless
- Cont. Current: 160A
- Peak Current: 1100A
- Battery: 2S Lipo
- BEC Output Voltage: 6.0/7.4V
- BEC Output Current: 8A Cont. / 12A Peak
- Firmware Upgrade: Supported
- Data Recording: Extreme value, Real-time Data
- Size: 37.9×31.4x30mm
- Weight: 55g
Basic Information
Compatibility
- Motor: 1/10th TC≥4.5T;1/10th Off Road≥5.5T
- Vehicle: 1/10th TC; 1/10th Off Road/Etc.
Wiring and Cooling
Output Wires: Black-13AWG-180MM*3
- Input Wires: Red-13AWG-180MM*1
Black-13AWG-180MM*1 - Cooling Fan: 25x25x10mm, 5-8.4V BEC
ESC Programming Via

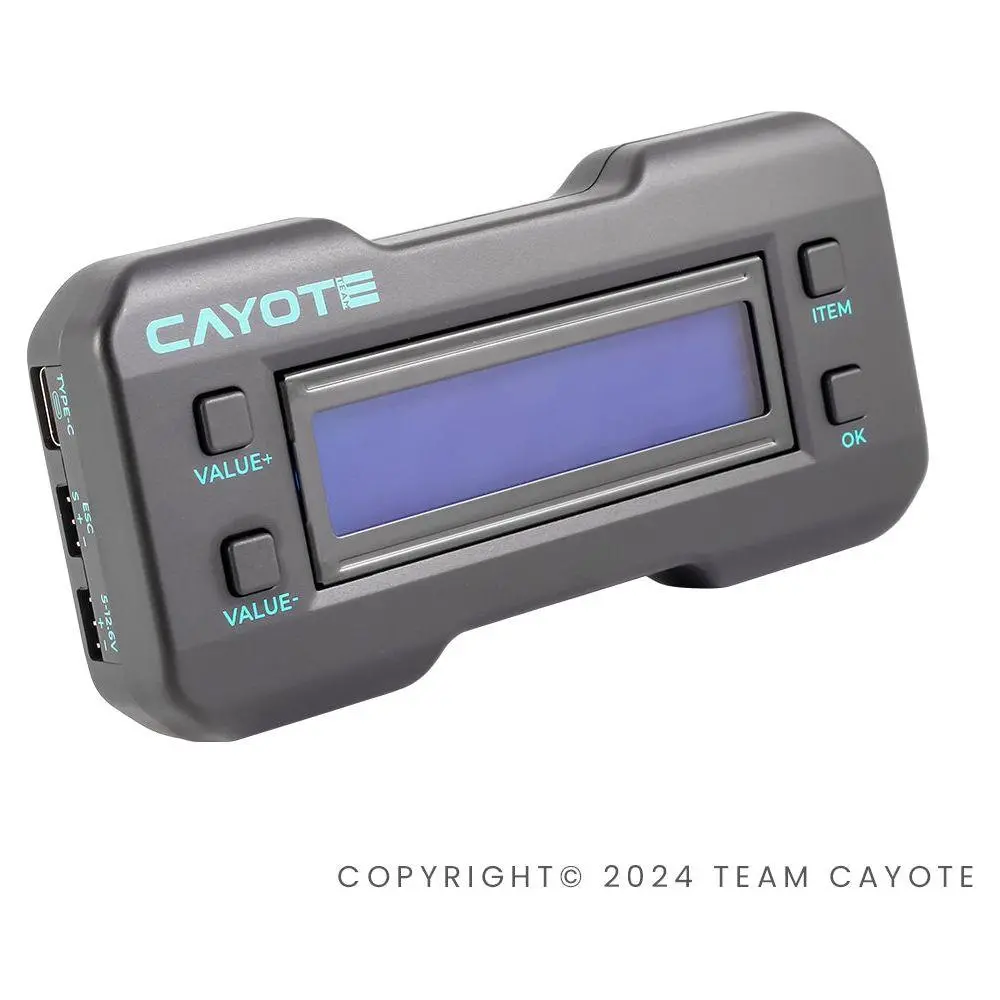

- Xlink Program Box Compatible
- B-Tune Connect (Optional)
- Internal Program (Port)(APP Control)
