Hall Effect Gear Tooth Sensor – 5/16″-24 Thread, Designed for Strange Ultra Case (Part #18-10007)

Description

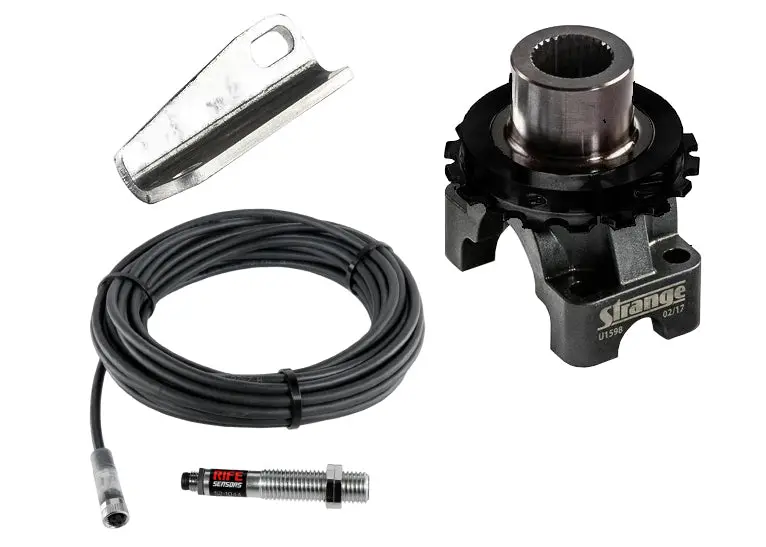

This 5/16″ Hall Effect Sensor is made to work in conjunction with our Billet High Def Gear Tooth Driveshaft Sensor Wheel.

Wiring:  (Can be used with 5v, 12v, or 16v reference)

Red:  Reference power

Black:  Reference ground

White:  Signal Wire

Note:  This sensor has an internally built in pull up resistor.

Note:  Please only use with reference power and reference ground.  This means getting your power from a dedicated sensor power source and a dedicated sensor ground source.  Any other Power/Ground will create noise in the signal.
