MoTeC Single Wideband Lambda Sensor to CAN Bus Converter (LTC)

Description

MoTeC Lambda to CAN ( LTC )

MoTeC’s LTC (Lambda to CAN) modules monitor, control and diagnose Bosch LSU 4.9 Lambda sensors, transmitting readings on a CAN bus. When multiple LTCs are used, up to 32 Lambda sensors can be configured on a single CAN bus, allowing an ECU or logging device to simultaneously monitor numerous Lambda sensors.

Sensors compatibility

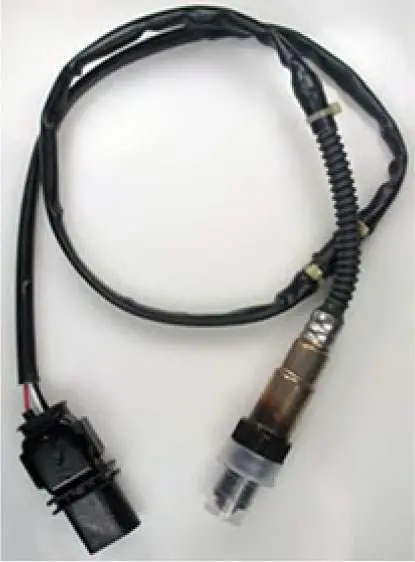

•     Bosch LSU 4.9, 5 Wire Sensor

BASIC SPECIFICATIONS

Inputs/Outputs

• 1 x Bosch LSU 4.9 Lambda sensor
• Power supply voltage 11 V – 16 V
• Power supply current 110 mA typical plus the sensor heater current (heater current is typically 0.5 A – 1 A and up to 2 A on startup)

Communications

•  1 x CAN at 1 Mbit/sec

Connectors

• 1 x 4 pin male DTM connector (power/CAN)
• 1 x mating connector for Bosch LSU 4.9 sensor

Physical

• Dimensions 38 x 26 x 14 mm excluding wiring looms and connectors
• Weight 62 grams
• Maximum ambient temperature 100 °C
