Power HD WT120 Brushless Crawler Servo – 50 kg-cm Torque, 0.08s Speed

Description

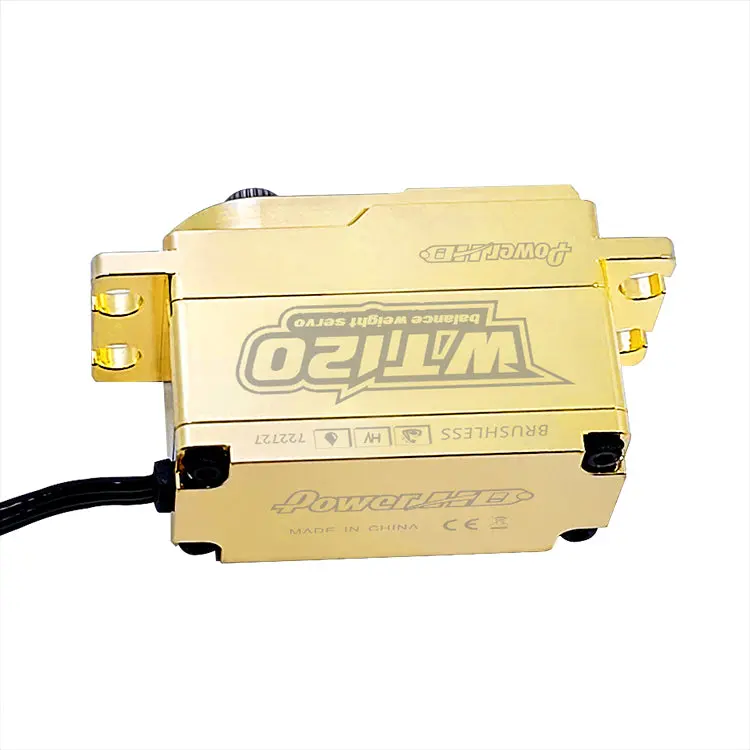

The cases of WT162 and WT120 are made of pure brass material and can be used directly as balance weight servos.

Both WT162 and WT120 use brushless motors and support the FlySky i-BUS2 protocol. The servo status can be directly observed on the FlySky NB4 series radio in real time, and the servo parameters can be programmed on the radio.

Features:

• Torque(6.0V): 36.0 kg-cm / (499.9 oz/in)

• Torque(7.4V): 42.0 kg-cm / (583.3 oz/in)

• Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)

• Speed: 0.11 sec (6.0V) 0.09 sec (7.4V)

• Speed: 0.08 sec (8.4V)

• Operating Voltage: 6.0 ~ 8.4 DC Volts

• Weight: 120 g (4.23 oz)

• Bearing Type: Ball Bearing x 2

• Motor Type: Brushless Motor

• Gear Type: Steel

• Operating Temperature: -10 ~60C

• Working frequency: 1520 s / 50~1500hz

• Size: 41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in)
