Description
Motor sold without packaging. Item was either on display or from a COMBO package. Item is in 100% working condition and unused.

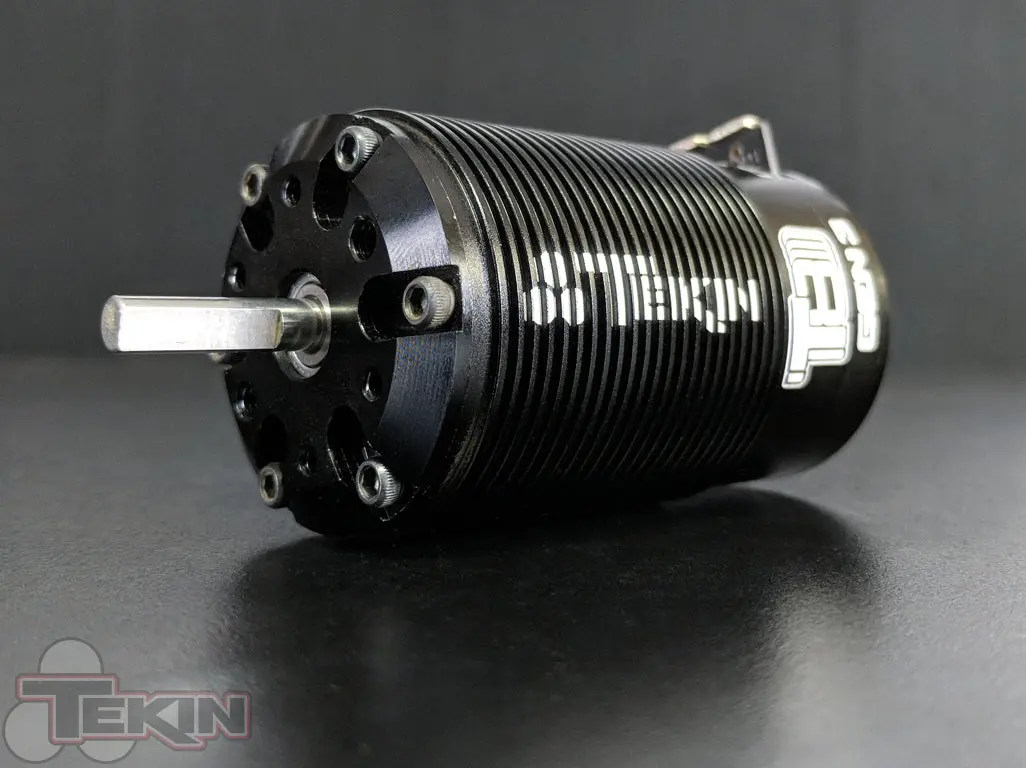

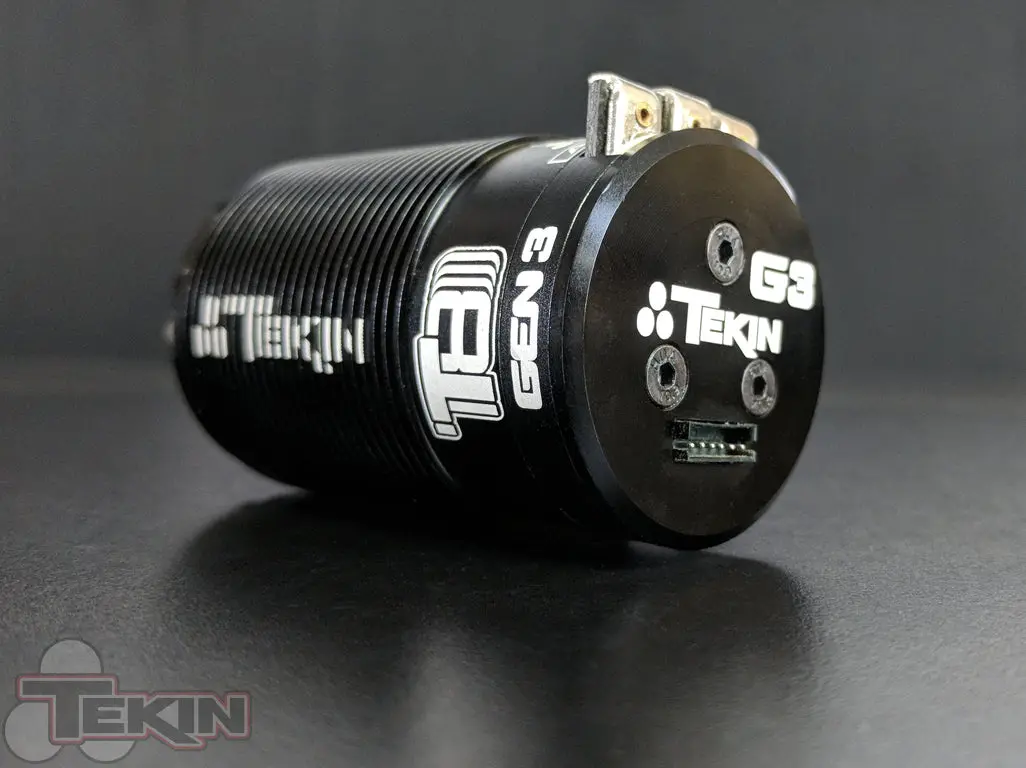

Tekin’s T8 GEN3 racing motors are racing performance defined. With a stronger rotor, new stack features and lower resistance the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 utilizing Tekin’s D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range. Maintain Pro- level control of your chassis no matter the situation on the track with a T8 GEN3. Pair the T8 GEN3 with an RX8 GEN3 Speed Control for the ultimate in 1:8 scale racing power systems.
4 Pole 12 Slot High Torque Motor Design
1:8 Scale Chassis Specific
ROAR Legal
CNC Machined 6061-T6 Billet Aluminum Ribbed Heat Sink Can
Neodymium Sintered Magnets
Precision Engineered for Maximum Energy Conversion
High Purity Copper Windings Maximize Conductivity and Efficiency
Low Resistance, High Power Solder Tabs
Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
Anodized End-bell plates maximize corrosion and wear resistance
High RPM ABEC-5 Precision Bearings
Oversized Front Bearing adds Durability
Rebuild-able Design
Designed to be paired with the RX8 GEN3 ESC
Voltage Limit: 2650kV – 4S LiPo
2250kV – 4S LiPo
2050kV – 4S LiPo
2000kV – 4S LiPo
1900kV – 4S LiPo
1700kV – 5S LiPo
1550kV – 5S LiPo
1400kV – 6S LiPo
1350kV – 6S LiPo
Weight: 4030 Buggy 11oz / 311g
4038 Truggy 13oz / 368
Shaft Dimensions: 5mm (.196″) x 19mm
Motor Diameter: 40mm / 1.57″
42mm / 1.65″ Including Fins
Motor Length: 4030 Buggy 69mm / 2.71″
4038 Truggy 77mm / 3.03″
Bearing Dimensions: Front: 5 x 16 x 5mm
Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm
Rebuildable: Yes
