Description

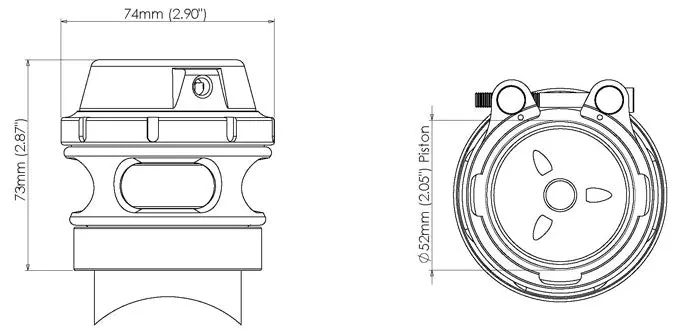

Turbosmart BOV Race Port – Blue – Gen V – (Female / TiAL Flange)
Part # TS-0204-1141
Turbosmart Raceport BOV suit Female (TiAL) Flange – No Weld on Fitting Supplied. Will fit TiAL Q Weld on Flanges.
The largest and the highest-flowing BOV in the Turbosmart range has just been redesigned and now features our unique collar design. 46% lighter and 25% smaller than the product it replaces, the new Race Port provides greater performance through faster turbo spool-up from idle and reduced turbo lag between gears.
FITTING INSTRUCTIONS
SPRING CHART
SUPPLIED WITH:
- Vacuum fittings, V-Band assembly, and Blue Spring Rated -18 to -14 InHg (installed)
- Billet 6000 series aluminium construction
- Quick release v-band collar for ease of installation and removal
- 2.0″ Inlet flows over 330 CFM
- MILSPEC hard anodized valve guide and stem
- Hi Temp Silicon Nomex diaphragm
- Positive sealing valve seat
- Twin 1/8″NPT pressure ports for convenient positioning
- Collar secured cap for quick spring changes
- 4inHg to 26inHg activation range
- 5 user configurable corrosion resistant springs available
- Valve position sensor option
- Designed, manufactured and validated in-house at Turbosmart HQ
