Walbro Hellcat 525 LPH In-Tank Fuel Pump — Universal Fit (Model F90000285)

Description

Walbro Universal Hellcat 525lph In-Tank Fuel Pump
Part #  F90000285
The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for high performance engines exceeding 700HP.
• Highest Flow In-Tank brushed fuel pump offering from TI Automotive
• Featuring award winning DCSS technology
• E85 Compatible
• Internal check valve — prevent fuel system pressure bleed down — avoid extended cranks
• High pressure relief setting — support supercharger and turbo applications
• Capable of supporting 900+HP at 60PSI naturally aspirated applications
• Flush mountable to existing hanger with installation kit 400-1174

Fuel: GAS & E85
Horsepower: 900+ at 60PSI, naturally aspirated applications
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD

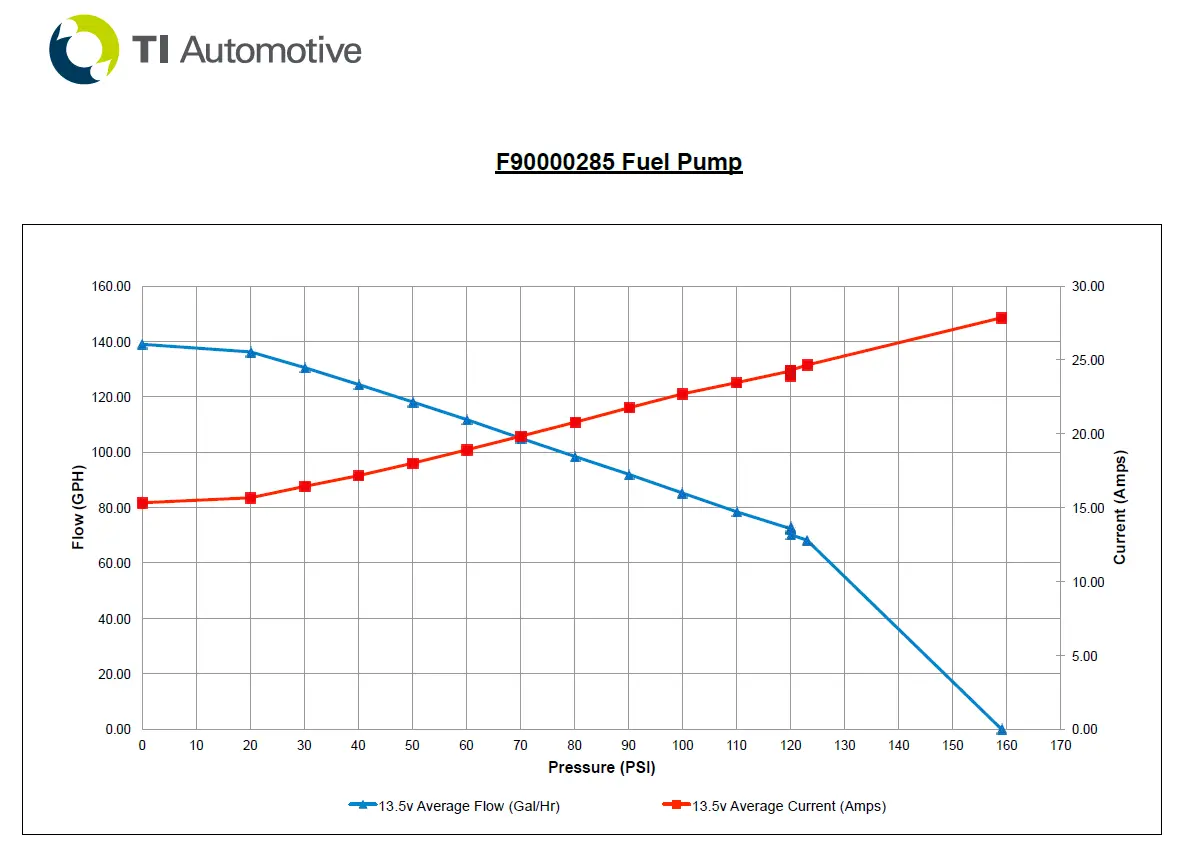

Flow Rate: 470lph @ 40psi (120+ gph)
Test Voltage: 13.5 Volts
