Description

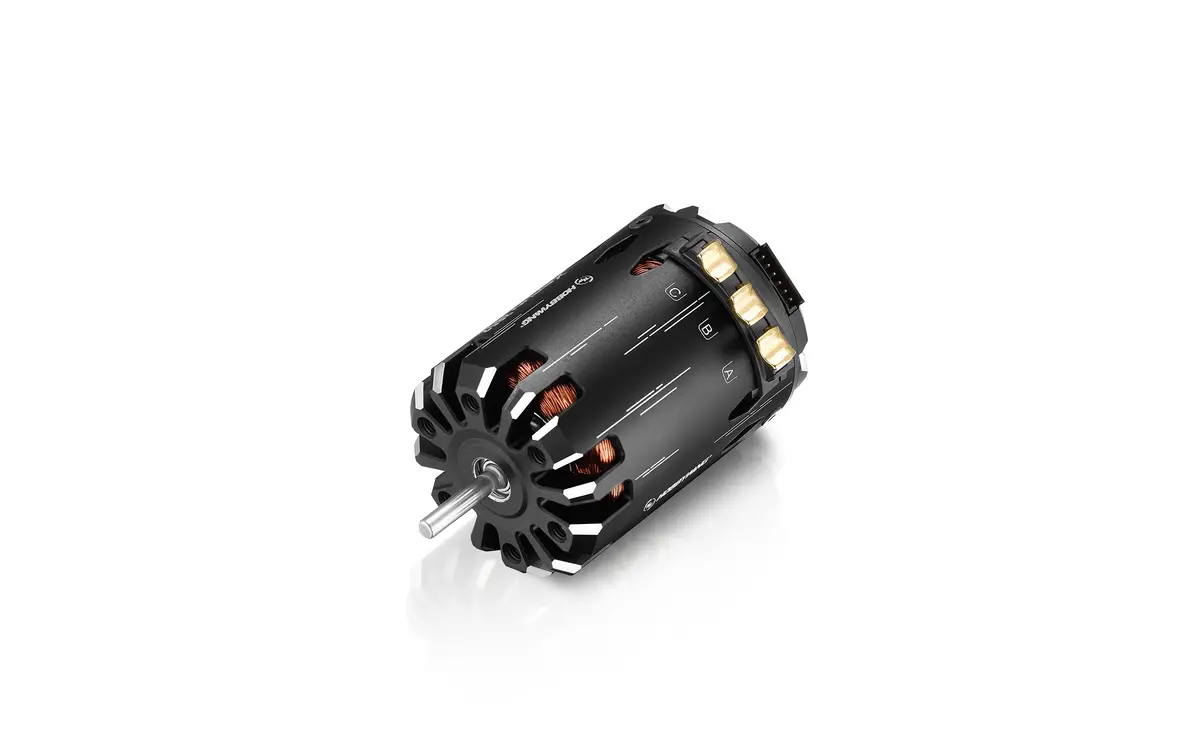

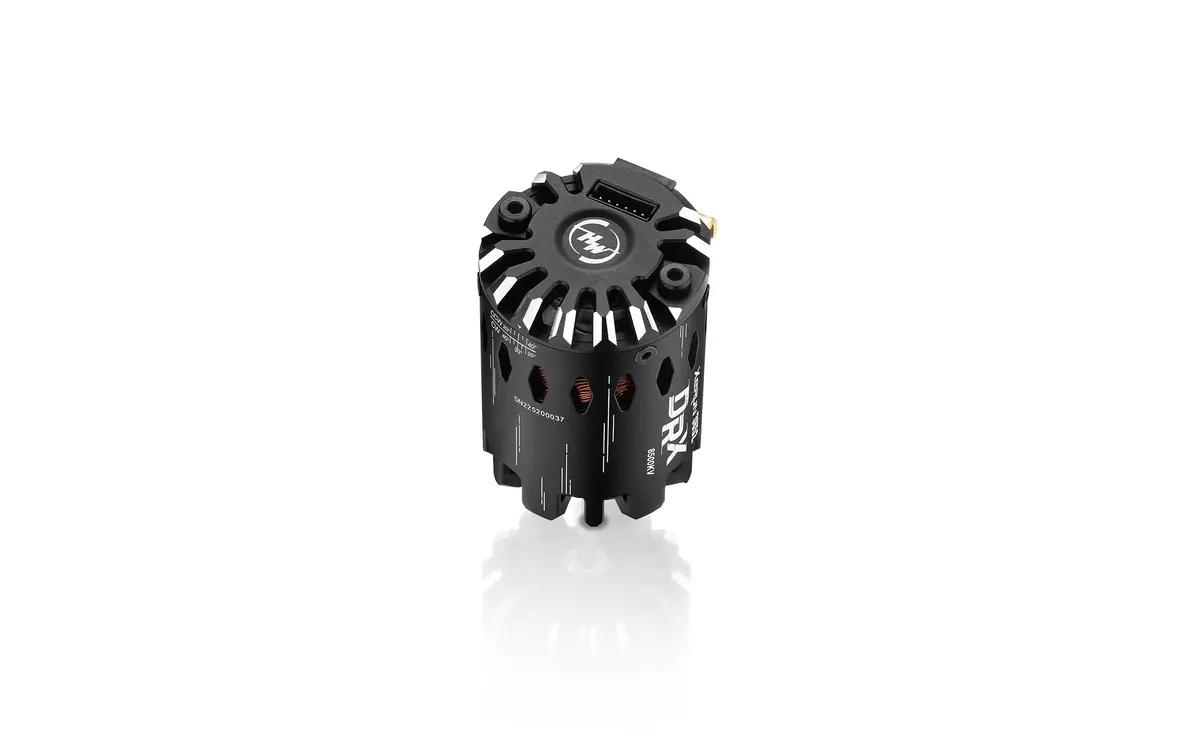

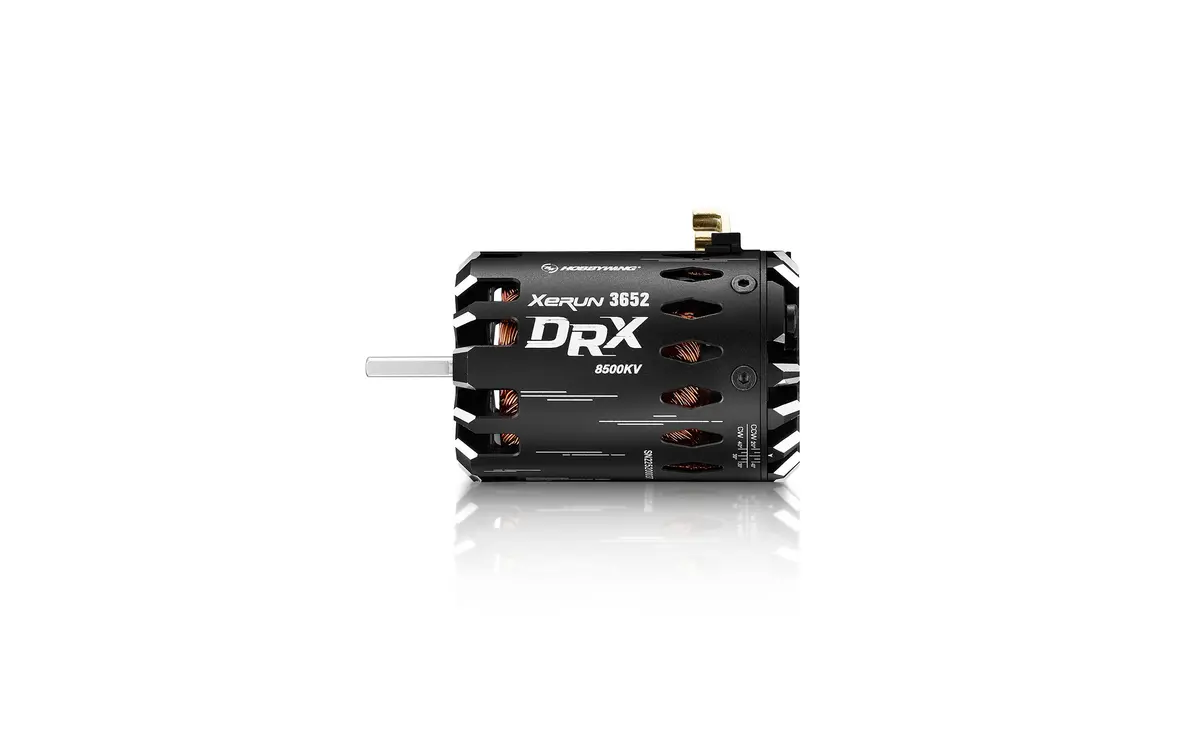

XeRun 3652 / 3662 DRX

High-speed operation, extremely fast

High KV, combined with a fully adjustable endbell and precision timing tuning provide unmatched power delivery for today’s Drag Racing.

Power, consistent, and reliable power

The motor is powerful, and consistent. With the 3662-6500KV motor, the maximum output power is increased by approximately 6% compared with similar top of the line motors on the market.

High efficiency, less heat

The motor is extremely efficient, resulting in less heat when compared to similar motors.
Using 0.23N m load test, The 3662 motor coil temperature is approximately 20°C lower then its competitors. The external temperature is 8°C cooler as well.

Failure Proof Rotor

The rotor steel sleeve ensure it will withstand the most extreme demands.

Dual sensor port design for easy wiring

Dual sensor ports allow builders wiring options.

Modular design for easy maintenance

The motor adopts a modular structure design, which is convenient for routine cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Premium materials, strong and reliable

• High hardness aluminum CNC shell
• High performance iron core
• Steel sleeve design explosion-proof rotor
• 200°C high temperature resistance wire
• High toughness alloy output shaft
• Top-of-the-line bearings
• The outlet terminal adopts customised UU-shaped gold-plated curved copper bar which are widened and thickened in order to have a lower internal resistance, strong current resistance and makes soldering a breeze.

Product Name		XeRun 3652 DRX 8500KV	XeRun 3652 DRX 9500KV	XeRun 3662 DRX 6500KV
Product Number		30401063	30401062	30401352
Type	Scale Brushed/Brushless Sensored/Sensorless Pole Count	1/10th BL SD 4	1/10th BL SD 4	1/10th BL SD 4
Relevant Parameters	KV Rating LiPo Cells No-load Current(A)	8500KV 2S LIPO 8.2A	9500KV 2S LIPO 8.6A	6500KV 2S LIPO 8.0A
Size & Weight	O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Front Bearing Rear Bearing	36 53 3.175 177g D9*D4*T4 D8*D3*T4	36 53 3.175 187g D9*D4*T4 D8*D3*T4	36 63 5 240g D11*D5*T5 D8*D3*T4
Other Parameters	Vehicles	1/10th Drag Racing	1/10th Drag Racing	1/10th Drag Racing

IMPORTANT NOTE:

► Enhance your RC car’s performance with the XeRun DRX 3660 sensored motor. With careful power pairing and wiring, this motor provides powerful and precise control without the risk of overloading or damage. Feel confident and in control with this high-quality motor designed for optimal performance.

• Never leave this product unsupervised when it is powered on.
• Ensure all wires and connections are well insulated before connecting the motor to related devices, as short circuit will damage your motor.
• Please strictly follow the A-A, B-B and C-C wiring order when connecting an ESC to the motor.
• Never allow this product to come in contact with water, oil, fuel or other electroconductive liquids. If this happens, stop the use of your product immediately and let it dry carefully.
• Read through the manuals of all power devices and chassis and ensure the power configuration is rational before using this unit.
• Never hit full throttle before installing the pinion, as high-speed rotation may cause damage to the motor in circumstances of no load.
• Ensure all devices are well connected, in order to prevent poor connection that may cause your vehicle to lose control or other unpredictable issues such as damage to the device.
• Stop using the motor when its shell temperature exceeds 100℃/212℉; otherwise, the rotor may be demagnetized and cause irreversible damage to your motor.
